225cc Enduro Underbone Motorcycle 5 Speed Manual Electric Start 142 Lightweight Trail

10
MOQ
500USD
Price
225cc Enduro Underbone Motorcycle 5 Speed Manual Electric Start 142 Lightweight Trail
Features Gallery Product Description Chat Now
Features
Specifications
Displacement: 225 Ml
Max Output Power: 12 KW / 7500 ± 500 R/min
Ignition System: CDI Communication, DC-CDI
Gear And Clutch: 5-speed International
Front Suspension: Smooth Hydraulic Fork (inverted)
Rear Brake: Expandable Shoe / Drum, Optional Rear Disc
Highlight:

Underbone Motorcycle 5 Speed

,

Enduro Motorcycle Electric Start

,

225cc Motorcycle Lightweight 12 kW

Basic Infomation
Place of Origin: China
Brand Name: ZFYC
Model Number: ZF300-BXYY-6
Payment & Shipping Terms
Packaging Details: CKD
Delivery Time: 8 Weeks
Payment Terms: L/C,T/T
Supply Ability: 800/Month
Product Description

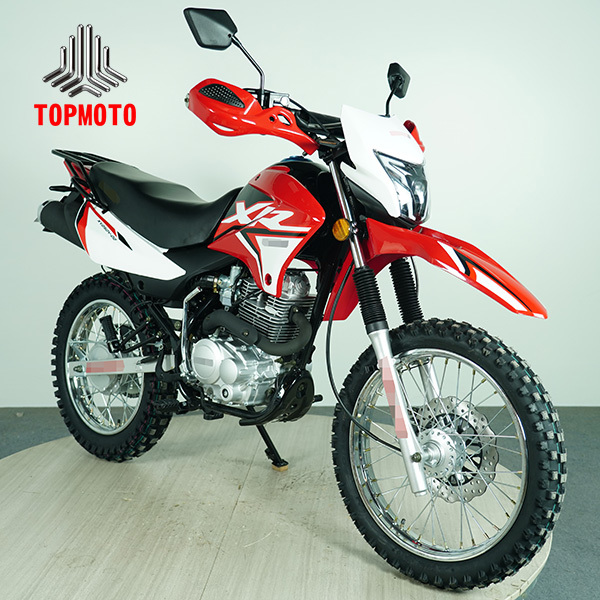

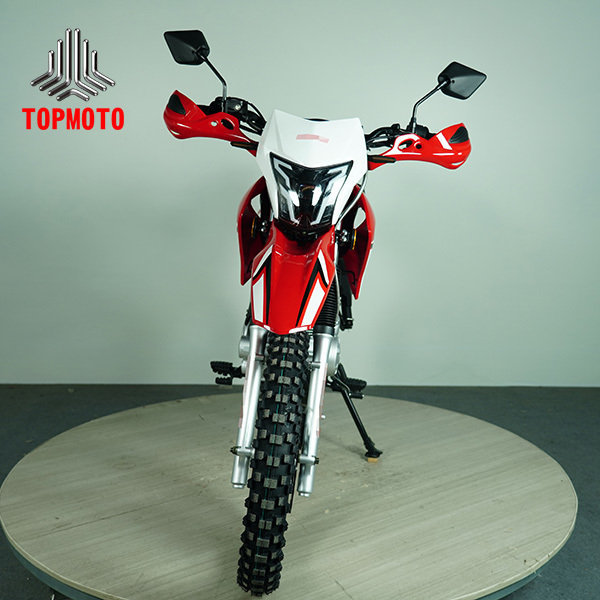

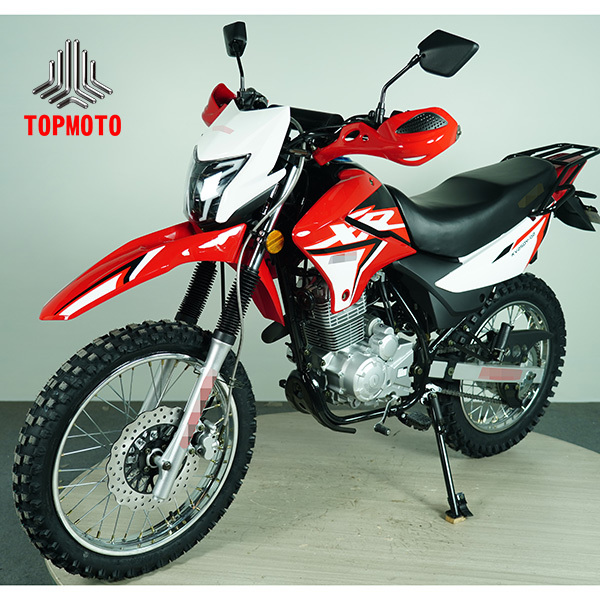

ZFYC 225cc Enduro
225cc Enduro Motorcycle – 5-Speed Manual, Electric Start, 142 kg – Lightweight Trail-Ready Machine

Hit the trails with confidence aboard the ZFYC 225cc Enduro—a lightweight, capable off-road motorcycle engineered for riders who value agility, reliability, and performance. Whether you're navigating technical singletrack or exploring backcountry paths, this bike delivers the perfect balance of power and control.

Power comes from a horizontal single-cylinder, air-cooled 225cc engine delivering 12 kW at 7500 ± 500 rpm and 17.5 N·m of torque across the same range. The 9.0:1 compression ratio provides responsive throttle while ensuring long-term durability in demanding off-road conditions. DC-CDI ignition guarantees consistent spark whether you're splashing through creek crossings or climbing dusty hillsides.

The 5-speed international transmission puts you in command across varying terrain. Gear ratios are carefully spaced—from 1st at 2.909 for technical crawling to 5th at 0.954 for stretching out on connecting roads. Primary drive ratio of 3.333 paired with chain final drive transfers power efficiently to the rear wheel.

Chassis geometry is dialed for trail riding. The inverted smooth hydraulic front fork absorbs impacts, while the single spring rear shock maintains traction on uneven ground. With 230 mm of ground clearance and a 1440 mm wheelbase, you'll clear obstacles confidently while maintaining stability at speed.

Braking options offer flexibility—front disc brake available as optional upgrade, while rear brake comes standard as expandable shoe/drum with optional rear disc available. Roll on 90/100-21 front and 110/100-18 tires mounted on spoked wheels, with optional deep-tread patterns available for maximum grip in loose conditions.

Standing 2100 mm long, 850 mm wide, and 1210 mm tall, the ZFYC Enduro presents a purposeful profile. The 910 mm seat height positions riders for optimal control in technical sections. An optional rear shelf adds carrying capacity for essential gear.

Weighing just 142 kg ready to ride with a 150 kg maximum load capacity, this bike offers excellent maneuverability on tight trails. Fuel tank capacity ranges from 3.5 L to 4.3 L depending on configuration, while top speed reaches 96.4 km/h. Climbing ability exceeds 28°, so steep ascents won't force a detour.

Full LED lighting enhances visibility—the lens LED headlight delivers 15W high beam and 6W low beam with integrated 5W position light. The taillight combines 5W running, 10W brake, and 1.2W position functions. Front and rear dynamic LED indicators (0.6W–1W) ensure you're seen by other trail users. A maintenance-free 6MF7EL gel battery delivers reliable starts without constant attention.

The ZFYC 225cc Enduro—ready for adventure, built to last.

225cc Enduro Underbone Motorcycle 5 Speed Manual Electric Start 142 Lightweight Trail 0 225cc Enduro Underbone Motorcycle 5 Speed Manual Electric Start 142 Lightweight Trail 1
Specification Description
Number of cylinders and engine angle Single-cylinder, horizontal, air-cooled
Bore * Stroke 65.5 * 66.6 mm
Displacement 225 ml
Compression ratio 9.0 : 1
Max output power 12 kW / 7500 ± 500 r/min
Max torque 17.5 N·m / 7500 ± 500 r/min
Ignition system CDI Communication, DC-CDI
Starting system Foot & electric start
Magneto 8 Grade DC
Gear and clutch 5-speed international
Transmission mode Chain drive
Primary gear ratio 3.333
1st gear ratio 2.909
2nd gear ratio 1.866
3rd gear ratio 1.388
4th gear ratio 1.15
5th gear ratio 0.954
Front suspension Smooth hydraulic fork (inverted)
Rear suspension Spring shock absorber (single spring)
Front brake Optional: front disc brake
Rear brake Expandable shoe / drum, optional rear disc
Front tire 90/100-21, optional deep gear tire
Rear tire 110/100-18, optional deep gear tire
Front wheel Spoked wheel, optional inverted disc spoked wheel
Rear wheel Spoked wheel, optional disc spoked wheel
Flat fork Rectangular tube flat fork, disc brake swing arm
Rear shelf Optional rear shelf
Dimensions (L*W*H) 2100 * 850 * 1210 mm
Wheelbase 1440 mm
Seat height 910 mm
Ground clearance 230 mm
Net weight 142 kg
Max load 150 kg
Max speed 96.4 km/h
Climbing ability ≥28°
Fuel tank capacity 3.5 L / 4.3 L
Headlight Lens LED, high beam 15W / low beam 6W / position light 5W
Taillight LED, running 5W / brake 10W / position 1.2W
Front indicators Dynamic LED 0.6W / 1W
Rear indicators Dynamic LED 0.8W / 1W
License plate light 5 W
Battery Maintenance-free, 6MF7EL gel battery
