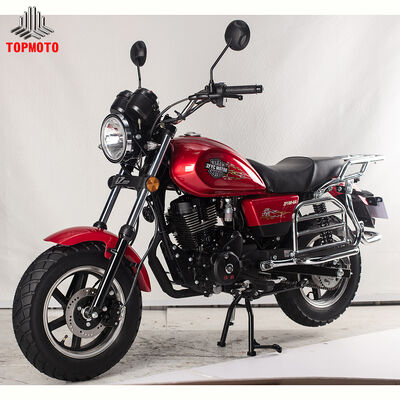

149cc EFI Ignition Motorcycle with Low Seat Height for Urban Commuting
  • name
  • name
  • name
  • name

149cc EFI Ignition Motorcycle with Low Seat Height for Urban Commuting

MOQ: 100
Price: Price negotiable
Standard Packaging: CKD,SKD,CBU
Delivery Period: 5-12 weeks
Payment Method: L/C,T/T
Supply Capacity: 1000Unit/Month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
ZFYC
Model Number
Mini Cruiser1-R
Product Description

This 149cc horizontal single-cylinder 4-stroke air-cooled motorcycle is equipped with high-efficiency EFI ignition system, providing strong and stable power output. It delivers max power 8.5kW/8500rpm and max torque 11.0N·m/7500rpm, with quick acceleration and excellent climbing performance, suitable for urban and rural roads. The 9.4:1 compression ratio ensures sufficient combustion and economical fuel consumption. With 12-pole DC magneto for stable power supply and electric & kick dual start, it starts reliably in all conditions. 4-speed manual clutch and chain drive offer smooth shifting and durable performance with low maintenance, making it an ideal choice for riders pursuing strong power and cost efficiency.

Number of cylinders and Engine angle

Single-cylinder, horizontal

120cc, 4-Stroke Single cylinder, Air Cooled

Bore x Stroke:

62 mm × 49.5 mm

56.4 mm × 49.5 mm

Displacement: 149 cm³

Compression Ratio: 9.4:1

Max. Output (kW/Rpm): 8.5 / 8500; 7.8 / 9000

Max. Torque (N·m/Rpm): 11.0 / 7500; 8.2 / 7500

Ignition: EFI (Electronic Fuel Injection)

Starting System: Electric & Kick start

Magneto: 12-pole DC

Gear and Clutch: 4-speed, manual clutch

Transmission Mode: Chain drive

Gear Box Ratios:

1st gear: 3.083 (2.769)

2nd gear: 1.882 (1.722)

3rd gear: 1.400 (1.272)

4th gear: 1.174 (1.000)

5th gear: 1.000

Primary / Final Ratio: 4.055


Chassis


Front Suspension: Telescopic hydraulic fork

Rear Suspension: Dual spring shock absorbers

Front Brake: Disc brake

Rear Brake: Drum brake

Front Tire: 110/90-12 tubeless tire (optional: deep gear tire)

Rear Tire: 110/90-12 tubeless tire (optional: deep gear tire)

Front Wheel: Spoked wheel (optional)

Rear Wheel: Spoked wheel (optional)

Rack / Shelf: Optional (rear shelf, large shelf)

Middle Shelf: Not equipped (optional)


Dimensions


Overall Size (L×W×H): 1700 mm × 820 mm × 1040 mm

Wheelbase: 1180 mm

Seat Height: 720 mm

Minimum Ground Clearance: 150 mm

Net Weight: 95 kg

Max. Load: 150 kg

Max. Speed: 75 km/h

Climbing Ability: ≥12°

Fuel Tank Capacity: 3.1 L

Helmet Box Capacity: Fits full-face helmet


Electrical System


Headlight: LED lens, 12V 8W (low beam) / 12W (high beam)

Taillight: LED 1.2W (brake light) / 1.2W (position light)

Front Turn Indicators: Dynamic LED 0.8W

Rear Turn Indicators: Dynamic LED 0.8W

Logo Light: Standard 0.3W

Battery: 12V 5Ah maintenance-free gel battery

Charger: USB 2A
