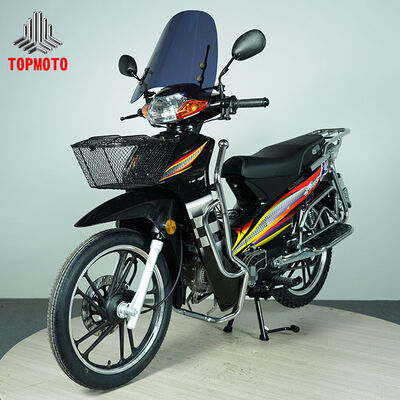

107cc Engine Underbone Motorcycle with Electric & Kick Start and 150kg Load Capacity
107cc Engine Underbone Motorcycle with Electric & Kick Start and 150kg Load Capacity
Key Attributes
Brand Name:ZFYC
Model Number:ST1-BY
Place of Origin:CHINA
Minimum Order Quantity:100
Price:Price negotiable
Supply Ability:3000Unit/Month
Delivery Time:5-12 weeks
Payment Terms:L/C,T/T
Standard Packaging:CKD,SKD,CBU
Product Summary
Lightweight design at only 86kg makes it agile and easy to handle, even for beginners and female riders. With 150kg max load capacity and front & rear carriers, it offers strong practicality for short-distance travel and cargo carrying in various scenarios Item Description Engine Type Single...
Product Details
Highlight:
107cc underbone motorcycle electric start
,underbone motorcycle with kick start
,107cc motorcycle 150kg load capacity
Colors:
Available In Multiple Colors
Engine Displacement:
Multiple Displacements Available
Product Description
Detailed Specifications & Features
Lightweight design at only 86kg makes it agile and easy to handle, even for beginners and female riders. With 150kg max load capacity and front & rear carriers, it offers strong practicality for short-distance travel and cargo carrying in various scenarios
| Item | Description | |||||||
| Engine Type | Single-cylinder, horizontal engine | |||||||
| Bore × Stroke | 52.4 mm × 49.5 mm | |||||||
| Displacement | 107 cc | |||||||
| Compression Ratio | 9.1 : 1 | |||||||
| Max. Power | 5.2 kW @ 8,000 ± 500 rpm | |||||||
| Max. Torque | 7.2 N·m @ 5,000 ± 500 rpm | |||||||
| Ignition System | CDI ignition | |||||||
| Starting System | Electric & kick start | |||||||
| Magneto | 6-pole magneto, full-wave rectification | |||||||
| Transmission | 4-speed, semi-automatic clutch | |||||||
| Final Drive | Chain drive | |||||||
| Front Suspension | Telescopic hydraulic fork | |||||||
| Rear Suspension | Dual spring shock absorbers | |||||||
| Front Brake | Drum brake | |||||||
| Rear Brake | Drum brake | |||||||
| Front Tire | 2.50-17 | |||||||
| Rear Tire | 2.75-17 | |||||||
| Front Wheel | Spoked wheel / Optional: aluminum wheel | |||||||
| Rear Wheel | Spoked wheel / Optional: aluminum wheel | |||||||
| Rear Carrier | Yes | |||||||
| Center Carrier | Yes | |||||||
| Overall Dimensions (L×W×H) | 1900 × 700 × 1070 mm | |||||||
| Wheelbase | 1220 mm | |||||||
| Seat Height | 740 mm | |||||||
| Ground Clearance | 110 mm | |||||||
| Net Weight | 86 kg | |||||||
| Max. Load Capacity | 150 kg | |||||||
| Max. Speed | 80 km/h | |||||||
| Climbing Ability | ≥ 27° | |||||||
| Fuel Tank Capacity | 3.5 L | |||||||
| Helmet Box | No | |||||||
| Headlight | 12V 35W | |||||||
| Taillight | Combined taillight, 12V 21W / 10W | |||||||
| Front Turn Signals | 12V 5W | |||||||
| Rear Turn Signals | 12V 5W | |||||||
| License Plate Light | 12V 5W | |||||||
| Battery | 12V 5Ah, maintenance-free | |||||||
Custom motorcycle orders accepted
Wholesale from Factory
