Home /Products/Underbone Motorcycle/Single Cylinder Underbone Motorcycle Semi 80km/H 8500rpm Automatic Motorcycle Motorbike

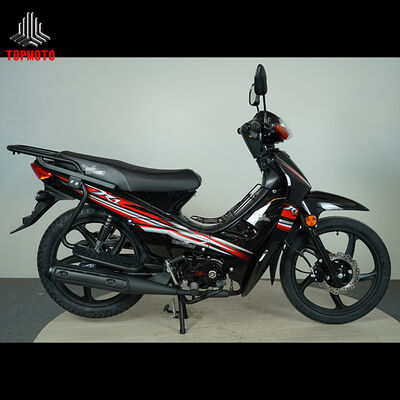

Single Cylinder Underbone Motorcycle Semi 80km/H 8500rpm Automatic Motorcycle Motorbike

100
MOQ
350$-400$
Price
Single Cylinder Underbone Motorcycle Semi 80km/H 8500rpm Automatic Motorcycle Motorbike
Features Gallery Product Description Chat Now
Features
Specifications
Engine Type: Single-cylinder, Horizontal Engine
Displacement: 107 Cc
Max. Power: 5.2 KW @ 8,000 ± 500 Rpm
Max. Torque: 7.2 N·m @ 5,000 ± 500 Rpm
Front Suspension: Telescopic Hydraulic Fork
Rear Suspension: Dual Spring Shock Absorbers
Highlight:

Single Cylinder Underbone Motorcycle

,

semi automatic motorcycle 80km/h

,

8500rpm semi automatic motorbike
Basic Infomation
Place of Origin: CHINA
Brand Name: ZFYC
Model Number: ST1-B
Payment & Shipping Terms
Packaging Details: CKD/SKD/CBU
Delivery Time: 5-12 weeks
Payment Terms: L/C,T/T
Supply Ability: 3000Unit/Month
Product Description
107cc Single-Cylinder Horizontal Engine Motorcycle | 5.2kW Max Power, 80km/h Max Speed | Electric & Kick Start | 4-Speed Semi-Automatic
Powered by a 107cc single-cylinder horizontal engine, this motorcycle delivers 5.2kW of max power at 8,000rpm and 7.2N*m of torque at 5,000rpm, paired with a 4-speed semi-automatic clutch for smooth, intuitive control. Weighing just 86kg and featuring a 740mm seat height, it's easy to handle for riders of all experience levels.
Key Features
  • 107cc single-cylinder horizontal engine
  • 5.2kW max power output
  • 4-speed semi-automatic transmission
  • Electric and kick start options
  • Lightweight 86kg design for easy handling
  • 80km/h maximum speed capability
Technical Specifications
Engine Type Single-cylinder, horizontal engine
Bore * Stroke 52.4 mm * 49.5 mm
Displacement 107 cc
Compression Ratio 9.1 : 1
Max. Power 5.2 kW @ 8,000 ± 500 rpm
Max. Torque 7.2 N*m @ 5,000 ± 500 rpm
Ignition System CDI ignition
Starting System Electric & kick start
Magneto 6-pole magneto, full-wave rectification
Transmission 4-speed, semi-automatic clutch
Final Drive Chain drive
Front Suspension Telescopic hydraulic fork
Rear Suspension Dual spring shock absorbers
Front Brake Drum brake
Rear Brake Drum brake
Front Tire 2.50-17
Rear Tire 2.75-17
Front Wheel Spoked wheel / Optional: aluminum wheel
Rear Wheel Spoked wheel / Optional: aluminum wheel
Rear Carrier Yes
Center Carrier Yes
Overall Dimensions (L*W*H) 1900 * 700 * 1070 mm
Wheelbase 1220 mm
Seat Height 740 mm
Ground Clearance 110 mm
Net Weight 86 kg
Max. Load Capacity 150 kg
Max. Speed 80 km/h
Climbing Ability ≥ 27°
Fuel Tank Capacity 3.5 L
Helmet Box No
Headlight 12V 35W
Taillight Combined taillight, 12V 21W / 10W
Front Turn Signals 12V 5W
Rear Turn Signals 12V 5W
License Plate Light 12V 5W
Battery 12V 5Ah, maintenance-free
