Home /Products/Underbone Motorcycle/3.1L Fuel Tank Underbone Motorcycle Daily 1920MM Urban Commuter Motorcycle

3.1L Fuel Tank Underbone Motorcycle Daily 1920MM Urban Commuter Motorcycle

100
MOQ
400$
Price
3.1L Fuel Tank Underbone Motorcycle Daily 1920MM Urban Commuter Motorcycle
Features Gallery Product Description Chat Now
Features
Specifications
Engine Type: Single-cylinder, Horizontal, Air-cooled
Displacement: 107 Cc
Max. Power: 5.2 KW @ 8,000 ± 500 Rpm
Transmission: 4-speed, Semi-automatic Clutch (with Top Gear Protection)
Front Brake: Disc Brake
Rear Brake: Drum Brake
Highlight:

3.1L fuel tank Underbone Motorcycle

,

daily urban commuter motorcycle

,

1920MM urban commuter motorcycle
Basic Infomation
Place of Origin: CHINA
Brand Name: ZFYC
Model Number: XY2-OS
Payment & Shipping Terms
Packaging Details: CKD,SKD,CBU
Delivery Time: 5-12 weeks
Payment Terms: L/C,T/T
Supply Ability: 1000Unit/Month
Product Description

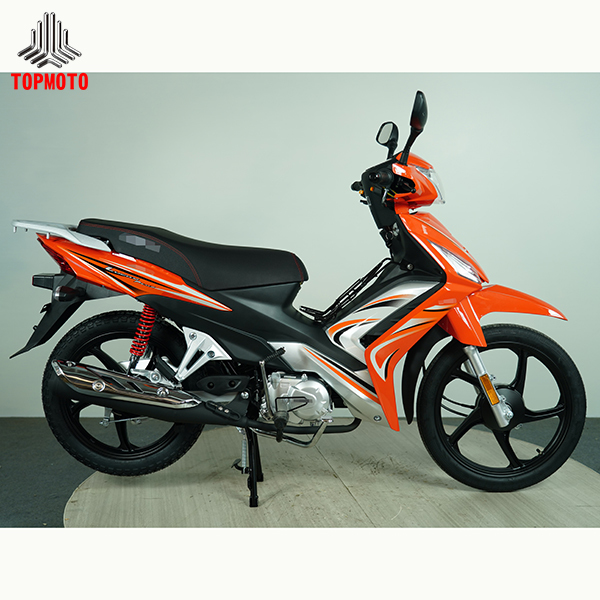

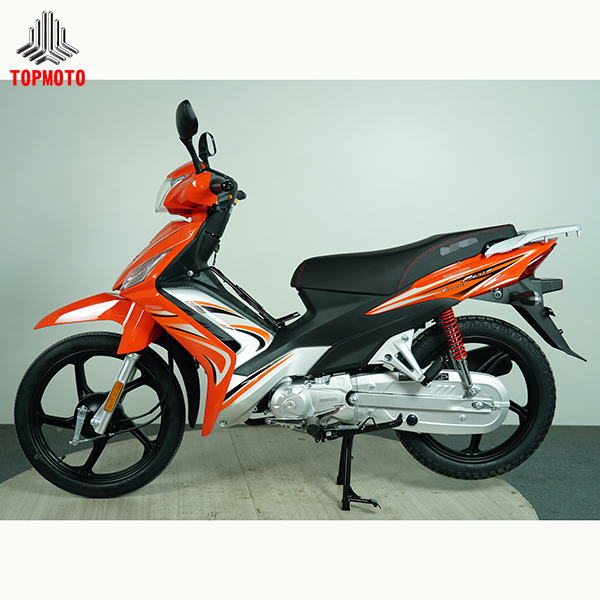

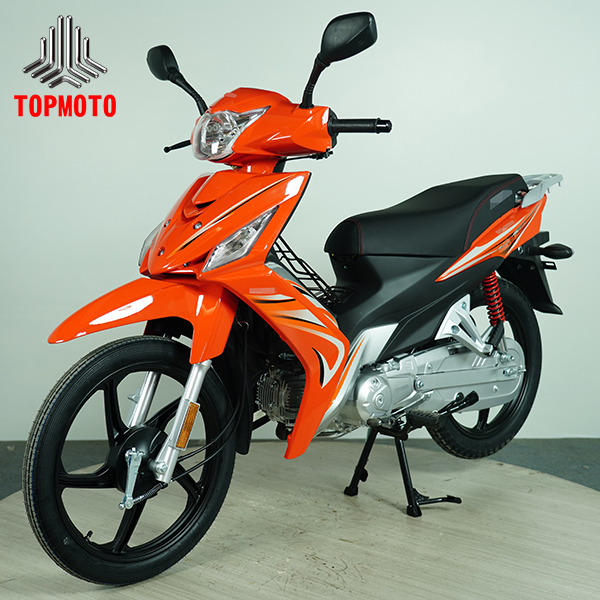

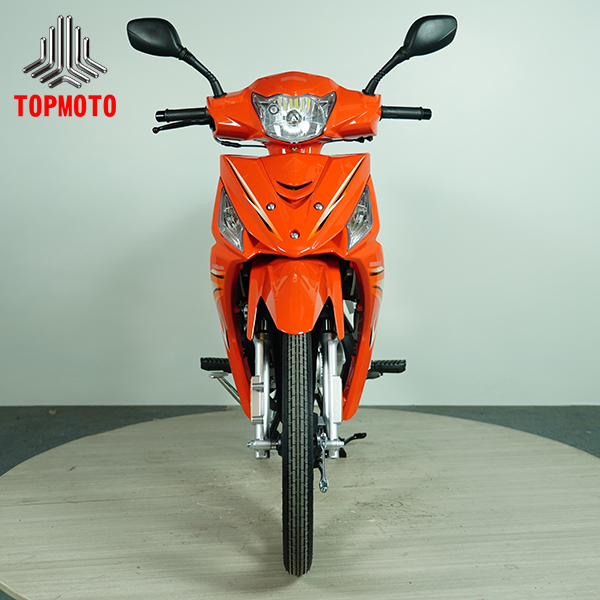

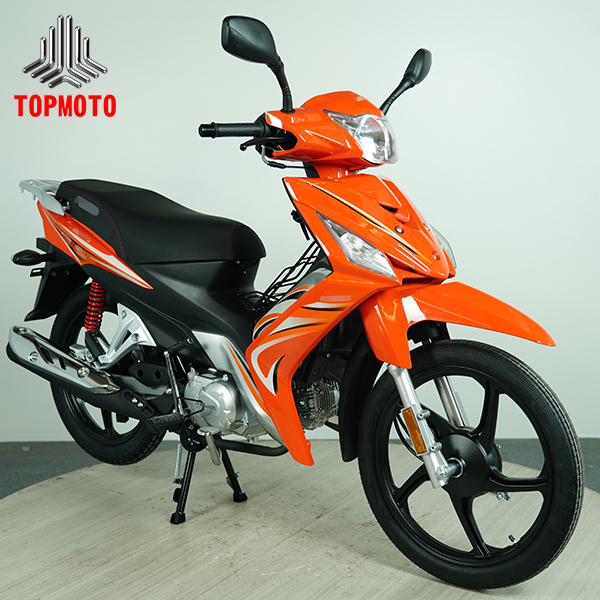

107cc Economical Motorcycle Overview
High-quality 107cc motorcycle with CDI ignition, chain drive, aluminum wheels, 150kg load capacity, climbing ≥22°, 3.1L fuel tank, comfortable seat, easy to control, ideal for overseas daily use.
A popular 107cc economical motorcycle designed for international markets, combining practicality, fuel efficiency, and reliability. With moderate power output reaching maximum speeds of 78km/h, this motorcycle meets daily commuting needs while offering extended range from its 3.1L fuel tank.
Key Features
  • CDI ignition system for reliable starting
  • Chain drive transmission with 4-speed semi-automatic clutch
  • Durable aluminum wheels for reduced weight
  • 150kg maximum load capacity
  • ≥22° climbing ability for varied terrain
  • 3.1L fuel tank for extended range
  • Comfortable 780mm seat height
  • Easy-to-control design ideal for daily transportation
  • Maintenance-free 12V 5Ah battery
  • Front disc and rear drum brake system
  • High-quality halogen lighting system
Technical Specifications
Engine Type Single-cylinder, horizontal, air-cooled
Displacement 107 cc
Bore * Stroke 52.4 mm * 49.5 mm
Compression Ratio 9.1 : 1
Max. Power 5.2 kW @ 8,000 ± 500 rpm
Max. Torque 7.2 N*m @ 5,000 ± 500 rpm
Ignition System CDI
Starting System Electric & kick start
Transmission 4-speed, semi-automatic clutch (with top gear protection)
Final Drive Chain drive
Front Suspension Telescopic hydraulic fork
Rear Suspension Dual shock absorbers
Front Brake Disc brake
Rear Brake Drum brake
Front Tire 2.50-17 (M031 tread pattern)
Rear Tire 2.75-16 (M034 tread pattern)
Overall Dimensions 1920 * 720 * 1140 mm
Wheelbase 1255 mm
Seat Height 780 mm
Ground Clearance 140 mm
Net Weight 93 kg
Max. Speed 78 km/h
Fuel Tank Capacity 3.1 L
Custom Motorcycle Orders Accepted
Contact us for customized specifications and bulk ordering options for cross-border procurement and wholesale requirements.
