Urban Mobility Under Bone Motorcycle 1870mm 107cc Automatic Enduro Bikes

10
MOQ
450USD
Price
Urban Mobility Under Bone Motorcycle 1870mm  107cc Automatic Enduro Bikes
Features Gallery Product Description Chat Now
Features
Specifications
Engine Type: Single-cylinder, Horizontal
Displacement: 107 Cm³
Max Power: 5.2 KW / 8000±500 Rpm
Max Torque: 7.2 Nm / 5000±500 Rpm
Front Brake: Disc Brake
Helmet Box Capacity: Half Helmet
Highlight:

Urban Mobility under bone motorcycle

,

under bone motorcycle 1870mm

,

107cc automatic enduro bikes

Basic Infomation
Place of Origin: China
Brand Name: YIPOWER
Payment & Shipping Terms
Packaging Details: CKD
Delivery Time: 8 Weeks
Payment Terms: L/C,T/T
Supply Ability: 800/Month
Product Description

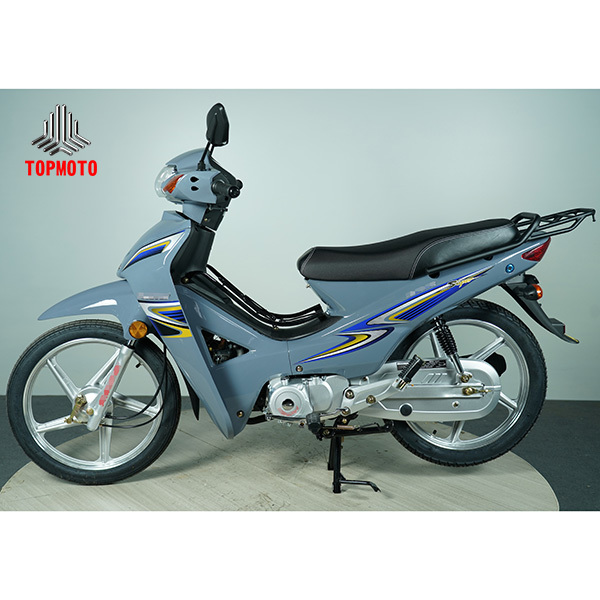

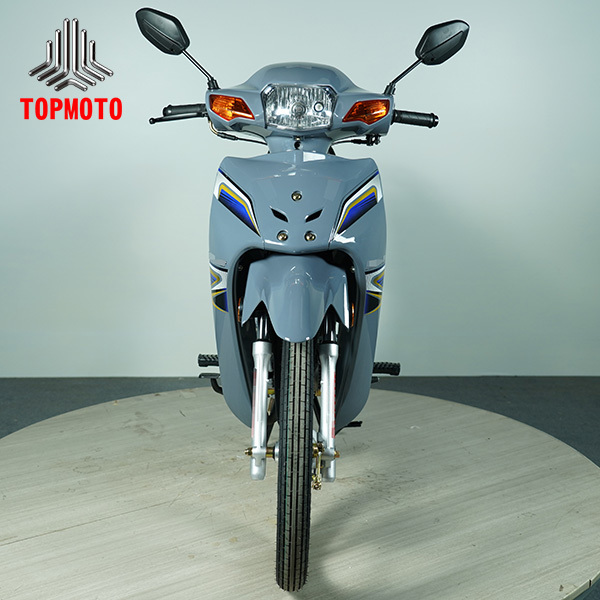

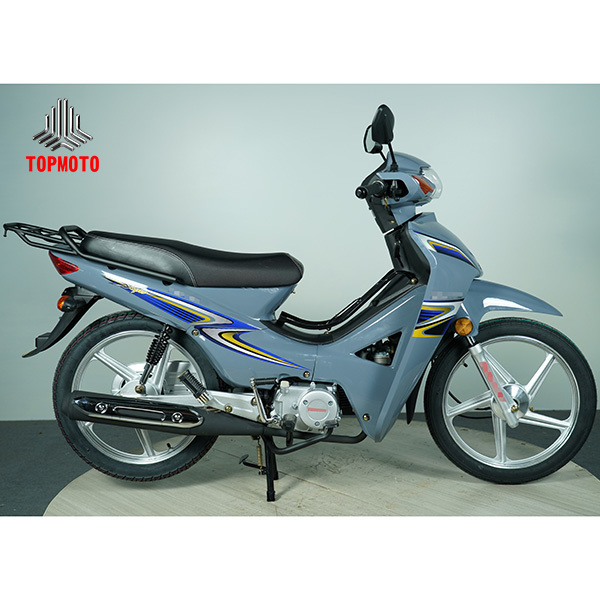

107cc Urban Mobility Motorcycle

107cc City Rider Motorcycle – Auto-Clutch 4-Speed, Electric Start, Lightweight 93kg – Perfect for Daily Commutes

Meet your new everyday companion—a 107cc 4-stroke single-cylinder motorcycle built for urban mobility. The horizontally positioned engine enhances balance and low-speed maneuverability, making it ideal for crowded city streets.

Riding is simplified with the circulating 4-speed automatic clutch system featuring high-gear protection. No complex clutch handling—just focus on the road ahead. Choose between electric or kick start for instant ignition, powered by a 12V 8-pole full-wave magneto for consistent electrical output.

Performance meets efficiency with 5.2kW max power at 8000±500 rpm and 7.2N.m peak torque at 5000±500 rpm. The 9.1:1 compression ratio extracts maximum mileage from the 3.1L fuel tank—perfect for daily errands and commuting.

Stopping power comes from a front disc brake paired with a rear drum brake, offering reliable control in all weather conditions. Front hydraulic forks and rear dual shock absorbers work together to smooth out bumpy urban roads.

Rolling on lightweight aluminum wheels, the bike features M031 2.50-17 front tires and M034 2.75-16 rear tires for confident traction. Practical touches include a rear aluminum grab handle, middle shelf for extra carrying capacity, and a helmet box that fits a half-helmet.

Compact dimensions (1870mm length, 780mm width, 1270mm height) with a 1255mm wheelbase make parking and filtering through traffic effortless. The 780mm seat height suits most riders, while 140mm ground clearance handles speed bumps and curbs with ease.

At just 93kg dry weight and a 150kg load capacity, this motorcycle is remarkably easy to handle for beginners and experienced riders alike. Top speed reaches 78km/h with a climbing ability of ≥22°—enough for everyday urban challenges.

Simple, reliable, and ready to ride—this 107cc motorcycle brings freedom to your daily routine.

Engine and Vehicle Specifications Table
Item Specification
Number of Cylinders and Engine Angle Single-cylinder, horizontal
Engine Type Single Cylinder, Air Cooled
Bore x Stroke 52.4 × 49.5 mm
Displacement 107 cm³
Compression Ratio 9.1:1
Max Power 5.2 kW / 8000±500 rpm
Max Torque 7.2 Nm / 5000±500 rpm
Ignition Communication CDI
Starting System Foot / Electric start
Magneto 12V, 8-grade full wave AC
Gear and Clutch 4-speed, automatic separation, cyclic (high gear protection)
Transmission Mode Chain drive
Gear Ratios 1st: 3.273; 2nd: 1.938; 3rd: 1.350; 4th: 1.043
Primary / Final Ratio 4.059 / 2.714
Front Suspension Smooth hydraulic fork
Rear Suspension Spring Shock Absorber
Front Brake Disc brake
Rear Brake Drum brake
Front Tire 2.50-17, M031 tread
Rear Tire 2.75-16, M034 tread
Front Wheel Aluminum wheel (standard)
Rear Wheel Aluminum wheel (standard)
Shelves Rear aluminum handrail
Middle Shelf Available
Overall Length 1870 mm
Overall Width 780 mm
Overall Height 1270 mm
Wheelbase 1255 mm
Seat Height 780 mm
Min Ground Clearance 140 mm
Net Weight 93 kg
Max Load 150 kg
Max Speed 78 km/h
Climbing Ability ≥22°
Fuel Tank Capacity 3.1 L
Helmet Box Capacity Half helmet
Headlight 12V 35W / 5W (low beam) / 12W (high beam)
Taillight 12V 21W / 5W
Front Indicators 10W
Rear Indicators 10W
License Plate Light 12V 5W
Battery 12V 5Ah, maintenance-free
