Air Cooled Top Underbone Motorcycle Single Cylinder Engine Entry Level Enduro

20
MOQ
350$
Price
Air Cooled Top Underbone Motorcycle Single Cylinder Engine Entry Level Enduro
Features Gallery Product Description Chat Now
Features
Specifications
Displacement: 107 Cc
Max. Power: 4.8 KW @ 8,000 ± 500 Rpm
Max. Torque: 7.1 N·m @ 6,000 ± 500 Rpm
Front Suspension: Telescopic Hydraulic Fork
Rear Suspension: Dual Shock Absorbers
Helmet Box Capacity: 5 L
Highlight:

Air Cooled top underbone motorcycle

,

top underbone motorcycle Single Cylinder

,

107ml entry level enduro motorcycle
Basic Infomation
Place of Origin: CHINA
Brand Name: ZFYC
Model Number: ZFYC UH115-H
Payment & Shipping Terms
Packaging Details: CKD
Delivery Time: 5-8 weeks
Payment Terms: L/C,T/T
Supply Ability: 100/month
Product Description
Spoked/Aluminum Wheel 107cc Engine Assembly

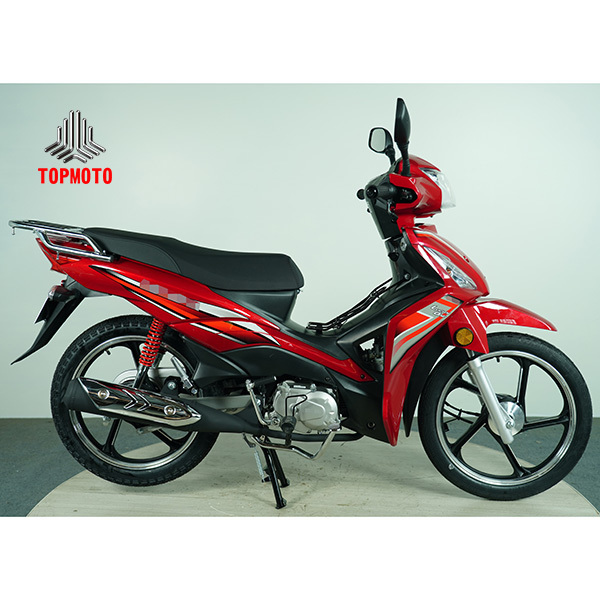

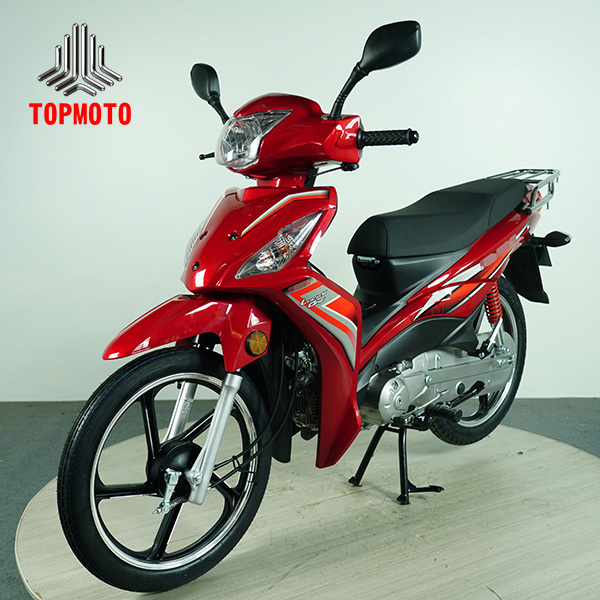

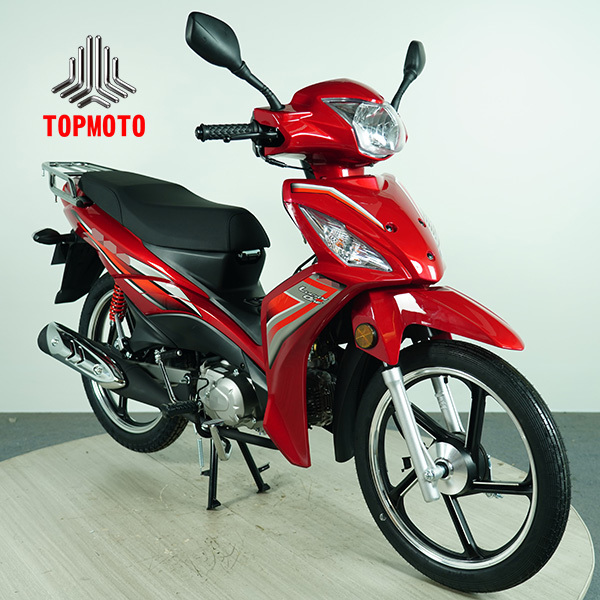

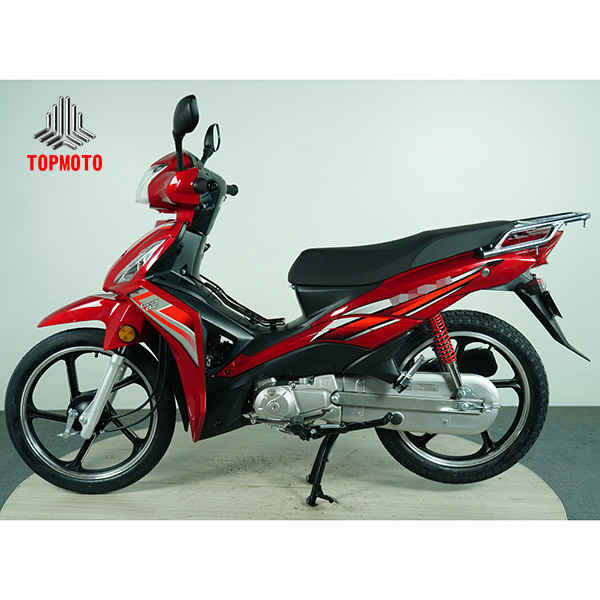

107cc Underbone Motorcycle with 4-Speed Semi-Automatic Clutch and Air-Cooled Single Cylinder Engine
Complete single cylinder horizontal air-cooled engine assembly with 4-speed semi-automatic clutch transmission system, designed for reliable performance in various vehicle applications.
Engine Specifications
Engine Type Single-cylinder, horizontal, air-cooled
Bore * Stroke 52.4 mm * 49.5 mm
Displacement 107 cc
Compression Ratio 9.1 : 1
Max. Power 4.8 kW @ 8,000 ± 500 rpm
Max. Torque 7.1 N*m @ 6,000 ± 500 rpm
Ignition System CDI
Starting System Electric & kick start
Magneto 12V 6-pole magneto, DC output
Transmission & Drive System
Transmission
4-speed, semi-automatic clutch
Final Drive
Chain drive
Primary Reduction Ratio
4.059
Final Reduction Ratio
2.714
Gear Ratios
1st Gear Ratio 3.273
2nd Gear Ratio 1.938
3rd Gear Ratio 1.35
4th Gear Ratio 1.043
Chassis & Suspension
Front Suspension Telescopic hydraulic fork
Rear Suspension Dual shock absorbers
Front Brake Drum brake
Rear Brake Drum brake
Wheels & Tires
Front Tire 2.50-17
Rear Tire 2.75-17
Front Wheel Steel wheel
Rear Wheel Steel wheel
Dimensions & Capacity
Overall Dimensions (L * W * H) 1910 * 710 * 1110 mm
Wheelbase 1255 mm
Seat Height 840 mm
Ground Clearance 140 mm
Net Weight 92 kg
Max. Load Capacity 150 kg
Performance & Storage
Max. Speed
85 km/h
Climbing Ability
≥ 12°
Fuel Tank Capacity
3.9 L
Helmet Box Capacity
5 L
Electrical System
Headlight Halogen bulb, 12V 35W / 5W
Taillight Halogen bulb, 12V 21W / 5W
Front Turn Signals Halogen, 12V 10W
Rear Turn Signals Halogen, 12V 10W
Battery 12V 5Ah
Additional Features
Rear Carrier Small rear carrier
Center Carrier Steel center carrier
Tag:

enduro motorcycle

enduro bike motorcycle

under bone motorcycle
