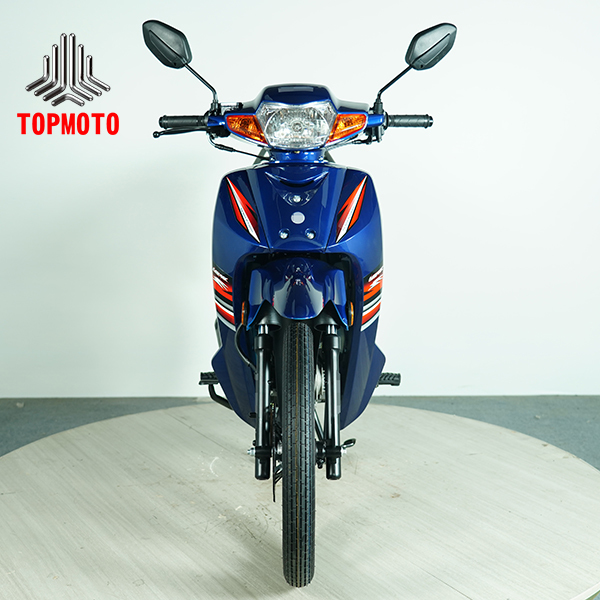

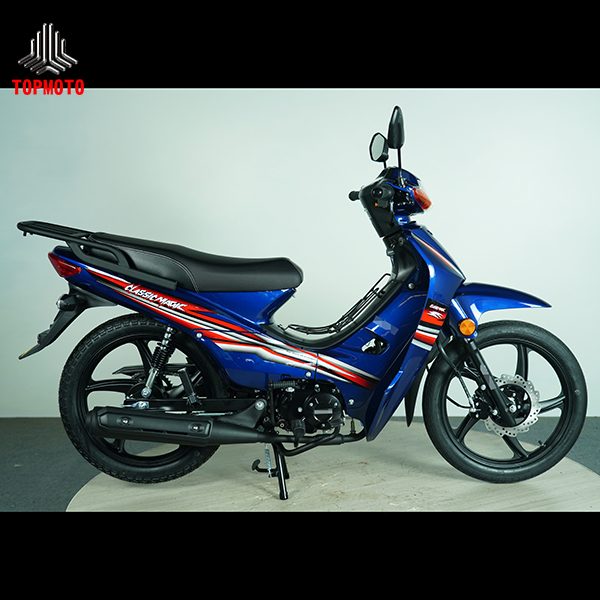

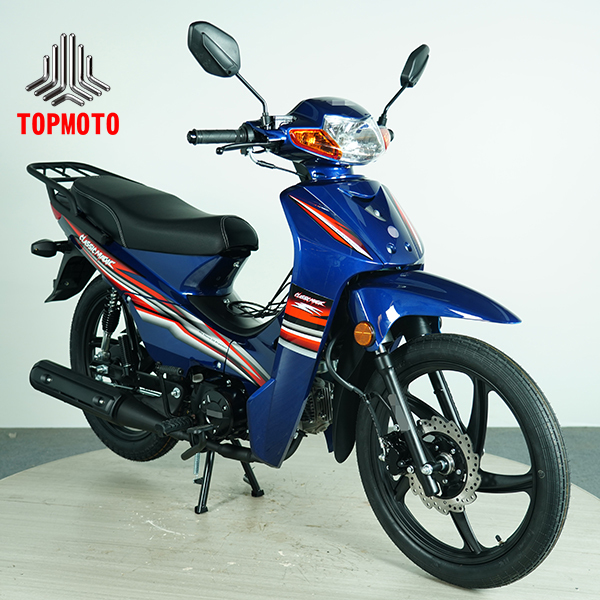

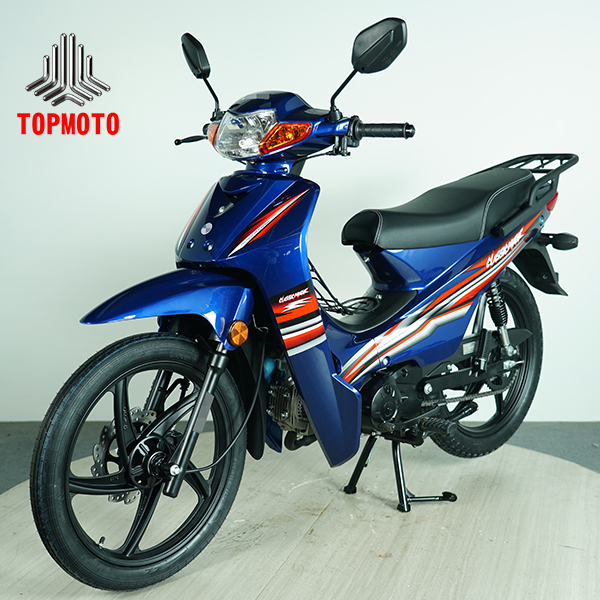

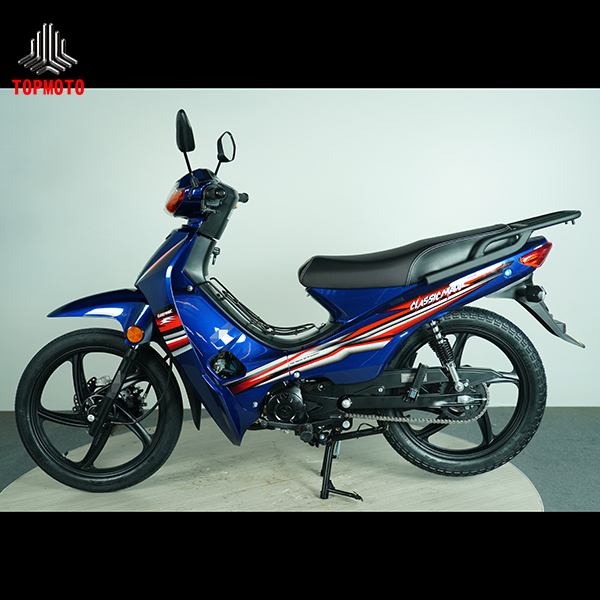

Entry Level Single Cylinder Motorcycle 1.9M 107cc Road Bikes

300
MOQ
350$
Price
Entry Level Single Cylinder Motorcycle 1.9M 107cc Road Bikes
Features Gallery Product Description Chat Now
Features
Specifications
Engine Type: Single-cylinder, Horizontal Engine
Displacement: 107 Cc
Starting System: Electric & Kick Start
Transmission: 4-speed, Semi-automatic Clutch
Front Suspension: Telescopic Hydraulic Fork
Fuel Tank Capacity: 3.5 L
Highlight:

Entry Level single cylinder motorcycle

,

single cylinder motorcycle 1.9M

,

107cc single cylinder road bikes
Basic Infomation
Place of Origin: CHINA
Brand Name: ZFYC
Model Number: ST-G
Payment & Shipping Terms
Packaging Details: CKD,SKD,CBU
Delivery Time: 5-12 weeks
Payment Terms: L/C,T/T
Supply Ability: 500Unit/Month
Product Description
107cc Entry-Level Motorcycle
This versatile 107cc motorcycle delivers reliable performance with 5.2kW power and 7.2N·m torque, featuring both electric and kick start systems for dependable operation.
Ride Comfort & Safety
The telescopic hydraulic front fork and dual spring rear shock absorbers provide a comfortable ride, while front and rear drum brakes ensure confident stopping power.
Technical Specifications
Engine Type Single-cylinder, horizontal engine
Bore * Stroke 52.4 mm * 49.5 mm
Displacement 107 cc
Compression Ratio 9.1 : 1
Max. Power 5.2 kW @ 8,000 ± 500 rpm
Max. Torque 7.2 N*m @ 5,000 ± 500 rpm
Ignition System CDI ignition
Starting System Electric & kick start
Magneto 6-pole magneto, full-wave rectification
Transmission 4-speed, semi-automatic clutch
Final Drive Chain drive
Front Suspension Telescopic hydraulic fork
Rear Suspension Dual spring shock absorbers
Front Brake Drum brake
Rear Brake Drum brake
Front Tire 2.50-17
Rear Tire 2.75-17
Front Wheel Spoked wheel / Optional: aluminum wheel
Rear Wheel Spoked wheel / Optional: aluminum wheel
Rear Carrier Yes
Center Carrier Yes
Overall Dimensions (L*W*H) 1900 * 700 * 1070 mm
Wheelbase 1220 mm
Seat Height 740 mm
Ground Clearance 110 mm
Net Weight 86 kg
Max. Load Capacity 150 kg
Max. Speed 80 km/h
Climbing Ability ≥ 27°
Fuel Tank Capacity 3.5 L
Helmet Box No
Headlight 12V 35W
Taillight Combined taillight, 12V 21W / 10W
Front Turn Signals 12V 5W
Rear Turn Signals 12V 5W
License Plate Light 12V 5W
Battery 12V 5Ah, maintenance-free
Key Features
  • Compact dimensions: 1900*700*1070mm for easy maneuverability
  • Low 740mm seat height for comfortable riding position
  • Dual start system (electric & kick) for reliable operation
  • Generous 150kg load capacity with practical carrier options
  • Efficient 3.5L fuel tank capacity
