Home /Products/Underbone Motorcycle/Lightweight Underbone Motorcycle 770mm Seat Height 140mm Urban Commuting

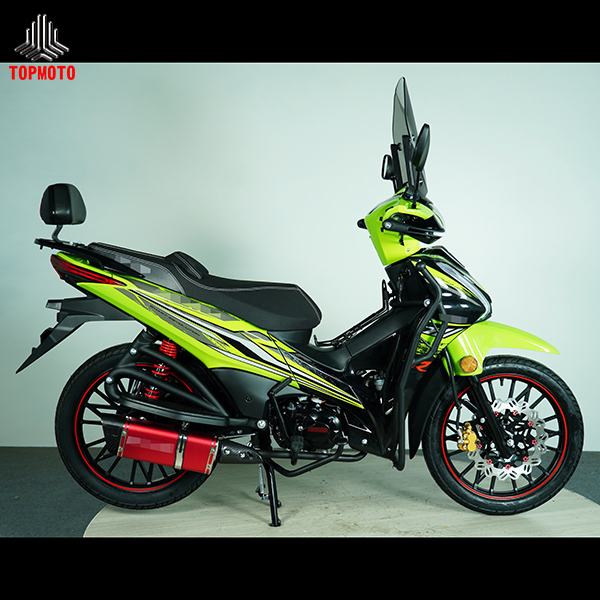

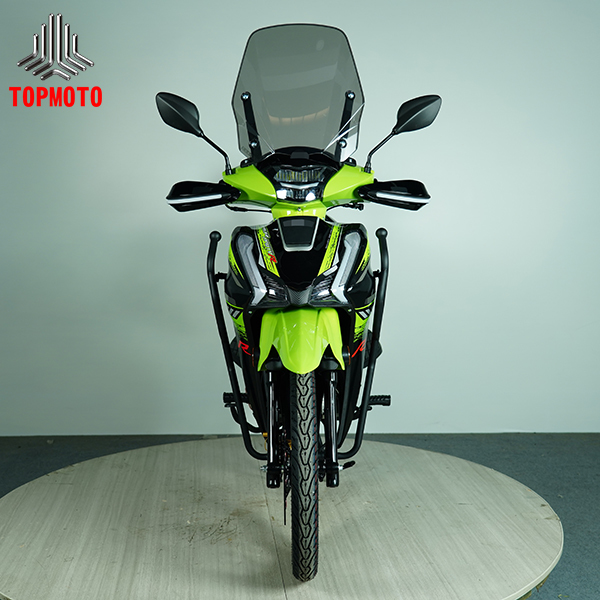

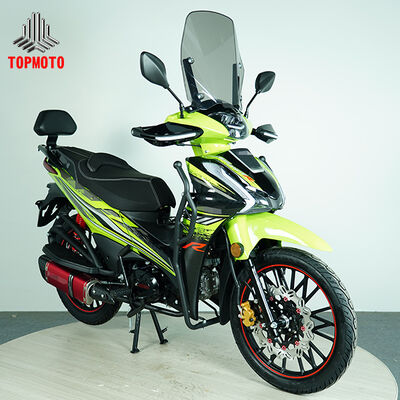

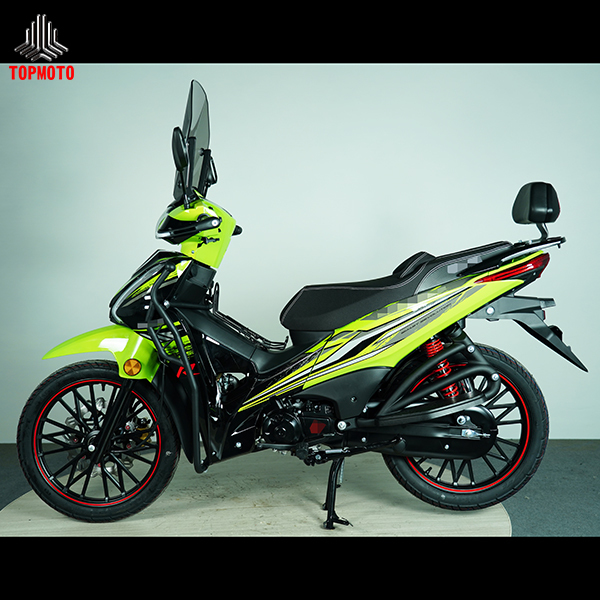

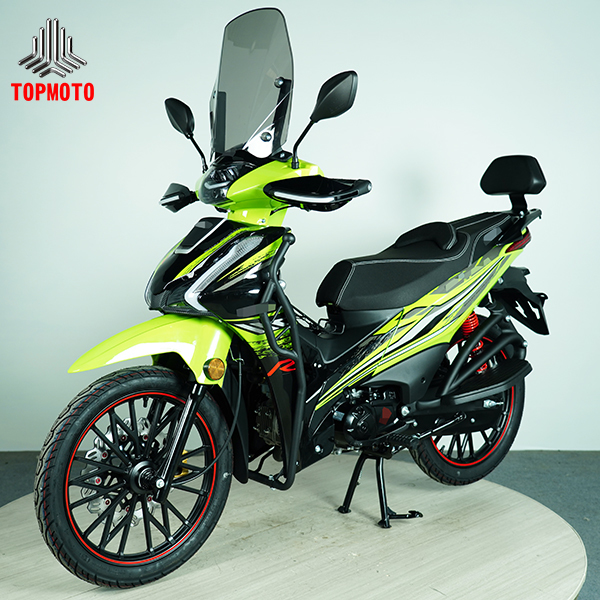

Lightweight Underbone Motorcycle 770mm Seat Height 140mm Urban Commuting

100
MOQ
400$
Price
Lightweight Underbone Motorcycle 770mm Seat Height 140mm Urban Commuting
Features Gallery Product Description Chat Now
Features
Specifications
Engine Type: Single-cylinder, Horizontal, Air-cooled
Displacement: 123.7 Cc
Max. Power: 6.3 KW @ 7,500 Rpm
Transmission: 4-speed, Semi-automatic Clutch
Front Wheel: Spoked Wheel (optional Aluminum Wheel)
Rear Wheel: Spoked Wheel (optional Aluminum Wheel)
Highlight:

Lightweight Underbone Motorcycle

,

770mm Seat enduro road motorbikes

,

Height 140mm enduro road motorbikes
Basic Infomation
Place of Origin: CHINA
Brand Name: ZFYC
Model Number: KUP-G
Payment & Shipping Terms
Packaging Details: CKD,SKD,CBU
Delivery Time: 5-12 weeks
Payment Terms: L/C,T/T
Supply Ability: 1000 Unit/Month
Product Description
Compact Urban Motorcycle
seat height 770mm suitable for both men and women, ground clearance 140mm for good passability, net weight 95kg light and easy to control, max load capacity 150kg, practical for passengers and cargo
Designed for versatile urban and rural use, this lightweight motorcycle features a 770mm seat height suitable for both men and women, 140mm ground clearance for excellent passability, and a 95kg net weight for easy handling. With a maximum load capacity of 150kg, it's practical for both passengers and cargo transport.
Product Overview
Compact dimensions of 1900*720*1080mm with a 1260mm wheelbase provide exceptional maneuverability. The lightweight 95kg construction ensures high flexibility and easy control in various riding conditions.
Key Features
  • 770mm seat height for comfortable riding position
  • 140mm ground clearance for superior road passability
  • Lightweight 95kg construction for easy handling
  • 150kg maximum load capacity for practical utility
  • Compact design for urban maneuverability
  • Electric & kick start system for reliable ignition
  • 4-speed semi-automatic transmission
  • Chain drive with optimal gear ratios
Technical Specifications
Engine Type Single-cylinder, horizontal, air-cooled
Displacement 123.7 cc
Max. Power 6.3 kW @ 7,500 rpm
Max. Torque 8.8 N*m @ 5,500 rpm
Starting System Electric & kick start
Transmission 4-speed, semi-automatic clutch
Final Drive Chain drive
Front Suspension Telescopic hydraulic fork
Rear Suspension Dual shock absorbers
Braking System Drum brakes (front and rear)
Tire Size Front: 2.50-17, Rear: 2.75-17
Wheel Type Spoked wheels (optional aluminum wheels)
Overall Dimensions 1900 * 720 * 1080 mm
Wheelbase 1260 mm
Seat Height 770 mm
Ground Clearance 140 mm
Net Weight 95 kg
Max. Load Capacity 150 kg
Max. Speed 75 km/h
Fuel Tank Capacity 3.1 L
Helmet Storage Full-face helmet capacity
Additional Features
Halogen lighting system with 12V electricals, maintenance-free gel battery, and optional aluminum rear carrier and center carrier for enhanced utility.
Custom motorcycle orders accepted - contact us for personalized specifications and requirements.
