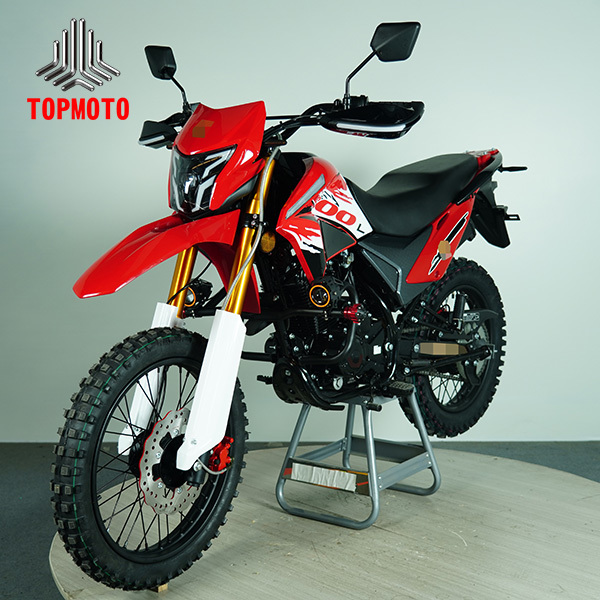

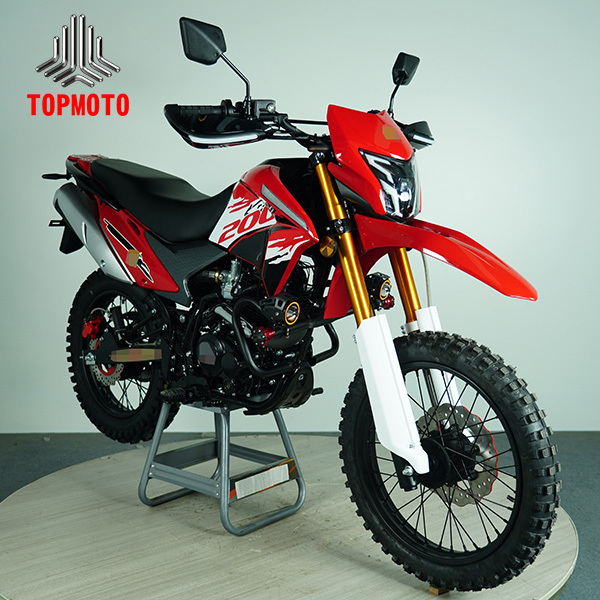

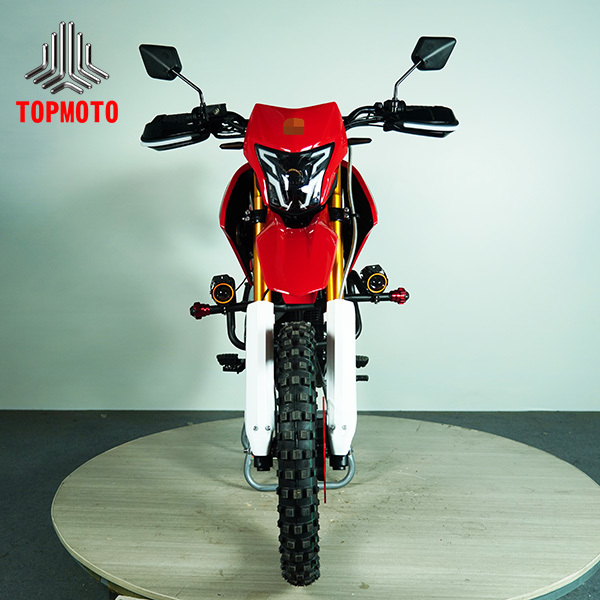

271cc Dirt Bike – Stealth Edition, 6-Speed Manual, Electric Start – Bold New Graphics, Same Raw Power
Make a statement on the trails with the ZFYC 271cc Dirt Bike, now featuring striking new colorway graphics that turn heads as fast as the bike carves through terrain. While the look is fresh, the soul remains pure off-road performance—built for riders who demand power, precision, and durability in every ride.
At its heart beats a vertical single-cylinder, air-cooled 271.3 cc engine delivering 16 kW of maximum power at 8500 rpm and 22 N·m of peak torque at 6500 rpm. The 9.29:1 compression ratio delivers responsive throttle feel while maintaining the legendary reliability ZFYC is known for—whether you're attacking motocross whoops or exploring remote backcountry trails.
The 6-speed constant mesh transmission puts you in complete command across any terrain. Gear ratios are meticulously spaced—from 1st at 2.583 (31/12) for technical crawling to 6th at 0.857 (18/21) for high-speed connecting sections. Primary drive ratio of 3.09 (68/22) combined with final drive ratio of 3.02 (13/43) ensures every bit of power reaches the rear wheel through the robust chain drive system.
The refreshed color scheme applies bold, aggressive graphics across the bike's distinctive silhouette. Standing 2400 mm long, 850 mm wide, and 1200 mm tall, the ZFYC now commands even more visual presence on the starting line or trailhead. The new graphics complement the bike's aggressive lines while maintaining the rugged aesthetic serious off-road riders demand.
Chassis geometry remains dialed for maximum performance. The hydraulic disc front fork absorbs brutal impacts, while the single rear shock maintains traction through whoops, rock gardens, and whooped-out straights. With 350 mm of ground clearance measured at the engine, you'll clear obstacles that would stop lesser machines. The 1400 mm wheelbase delivers high-speed stability without sacrificing nimble handling in tight switchbacks.
Braking duties are handled by a front disc brake paired with a rear drum brake—a proven combination delivering reliable stopping power in muddy, dusty, or wet trail conditions.
Roll on 4.6-17 front and 5.1-17 rear deep-tooth off-road tires mounted on standard iron mesh wheels, providing aggressive traction across loose dirt, gravel, and hard-packed surfaces. The aggressive tread pattern digs in when you twist the throttle, launching you forward with authority.
The 1000 mm seat height positions experienced riders optimally for technical sections, offering excellent visibility and control. An aluminum rear grab handle paired with a small iron shelf adds practical utility for hauling essential gear or securing the bike during transport.
Weighing 142 kg ready to ride with a 150 kg maximum load capacity, this bike offers an exceptional power-to-weight ratio for aggressive riding. The 11 L fuel tank provides ample range for full-day adventures, while top speed reaches 115 km/h—enough for fast fire roads and trail connections. Climbing ability reaches an impressive 28°, so steep ascents won't slow your momentum.
Full LED lighting keeps you visible—the 5W LED headlight, combined with front and rear LED indicators (1W each) and taillight with 5W running/21W brake functions, ensures you're seen in all conditions. A maintenance-free 12V 5Ah battery delivers reliable starts, with an optional charger available for convenience.
The ZFYC 271cc Dirt Bike in its fresh new graphics package proves that performance never goes out of style—but looking good while dominating the trail never hurts.
| Specification | Details | |||||||
| Engine Type & Cylinder Arrangement | Single-cylinder, vertical, air-cooled | |||||||
| Displacement | 271.3 cc | |||||||
| Bore * Stroke | 75 * 61.4 mm | |||||||
| Compression Ratio | 9.29:1 | |||||||
| Max Power | 16 kW @ 8500 rpm | |||||||
| Max Torque | 22 N·m @ 6500 rpm | |||||||
| Ignition | CDI Communication | |||||||
| Starting System | Electric / Kick Start | |||||||
| Magneto | 12V, 8-pole AC | |||||||
| Clutch | Manual Wet Multi-Plate | |||||||
| Gearshift | Constant Mesh, Two-Stage Transmission, 6-Speed | |||||||
| Transmission Mode | Chain Drive | |||||||
| Gear Ratios | 1st: 2.583 (31/12) | |||||||
| 2nd: 1.857 (26/14) | ||||||||
| 3rd: 1.437 (23/16) | ||||||||
| 4th: 1.167 (21/18) | ||||||||
| 5th: 1.000 (19/19) | ||||||||
| 6th: 0.857 (18/21) | ||||||||
| Primary / Final Drive Ratio | 3.09 (68/22) / 3.02 (13/43) | |||||||
| Front Suspension | Hydraulic Disc Fork | |||||||
| Rear Suspension | Single Shock Absorber | |||||||
| Front Brake | Disc Brake | |||||||
| Rear Brake | Drum Brake | |||||||
| Front Tire | 4.6-17 Deep Tooth Off-Road | |||||||
| Rear Tire | 5.1-17 Deep Tooth Off-Road | |||||||
| Front Wheel | Standard Mesh Wheel (Iron) | |||||||
| Rear Wheel | Standard Mesh Wheel (Iron) | |||||||
| Rear Carrier | Aluminum Rear Grab Handle + Small Iron Shelf | |||||||
| Middle Shelf | None | |||||||
| Overall Dimensions (L*W*H) | 2400 * 850 * 1200 mm | |||||||
| Wheelbase | 1400 mm | |||||||
| Seat Height | 1000 mm | |||||||
| Min Ground Clearance | 350 mm (engine clearance) | |||||||
| Net Weight | 142 kg | |||||||
| Max Load | 150 kg | |||||||
| Max Speed | 115 km/h | |||||||
| Climbing Ability | 28° | |||||||
| Fuel Tank Capacity | 11 L | |||||||
| Helmet Box Capacity | None | |||||||
| Headlight | LED, 12V, 5W | |||||||
| Taillight | 12V, 5W / 21W | |||||||
| Front Indicators | LED, 12V, 1W | |||||||
| Rear Indicators | LED, 12V, 1W | |||||||
| License Plate Light | Standard 12V, 5W | |||||||
| Battery | 12V 5Ah, Maintenance-Free | |||||||
| Charger | Optional | |||||||
