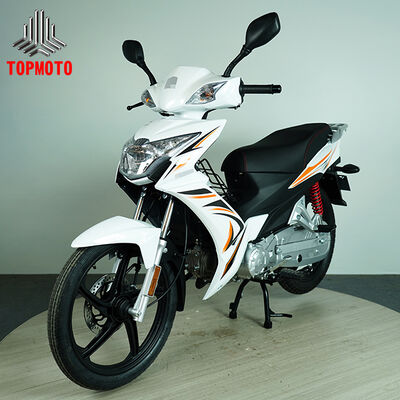

Durable 107cc Underbone Motorcycle with Electric & Kick Start, 12V 8-Pole Full-Wave AC Magneto and 150kg Maximum Load Capacity

200
MOQ
350$
Price
Durable 107cc Underbone Motorcycle with Electric & Kick Start, 12V 8-Pole Full-Wave AC Magneto and 150kg Maximum Load Capacity
Features Gallery Product Description Chat Now
Features
Specifications
Engine Type: Single-cylinder, Horizontal, Air-cooled
Displacement: 107 Cc
Max. Power: 5.2 KW @ 8,000 ± 500 Rpm
Max. Torque: 7.2 N·m @ 5,000 ± 500 Rpm
Front Wheel: Aluminum Wheel
Rear Wheel: Aluminum Wheel
Highlight:

1

,

1

,

1
Basic Infomation
Place of Origin: CHINA
Brand Name: ZFYC
Model Number: XY1-W
Payment & Shipping Terms
Packaging Details: CKD,SKD,CBU
Delivery Time: 5-12 weeks
Payment Terms: L/C,T/T
Supply Ability: 1000Unit/Month
Product Description
Durable 107cc Horizontal Single-Cylinder Motorcycle
This versatile motorcycle features both electric and kick start modes, powered by a reliable 12V 8-pole full-wave AC magneto. With a 3.1L fuel tank capacity for extended range, aluminum wheels, and lightweight 93kg construction, it offers excellent maneuverability and daily utility.
Key Performance Features
  • Dual starting system: Electric & kick start
  • 12V 8-pole full-wave AC magneto for reliable power generation
  • 4.059 primary reduction ratio and 2.714 final reduction ratio
  • Lightweight aluminum construction (93kg net weight)
  • ≥22° climbing ability for challenging terrain
  • 150kg maximum load capacity for passengers and cargo
  • 3.1L fuel tank reduces refueling frequency
Technical Specifications
Item Specification
Engine Type Single-cylinder, horizontal, air-cooled
Bore * Stroke 52.4 mm * 49.5 mm
Displacement 107 cc
Compression Ratio 9.1 : 1
Max. Power 5.2 kW @ 8,000 ± 500 rpm
Max. Torque 7.2 N*m @ 5,000 ± 500 rpm
Ignition System CDI
Starting System Electric & kick start
Magneto 12V, 8-pole, full-wave AC
Transmission 4-speed, semi-automatic clutch
Final Drive Chain drive
Primary Reduction Ratio 4.059
Final Reduction Ratio 2.714
1st Gear 3.273
2nd Gear 1.938
3rd Gear 1.35
4th Gear 1.043
Front Suspension Telescopic hydraulic fork
Rear Suspension Dual shock absorbers
Front Brake Drum brake
Rear Brake Drum brake
Front Tire 2.50-17 (M031 tread pattern)
Rear Tire 2.75-16 (M034 tread pattern)
Front Wheel Aluminum wheel
Rear Wheel Aluminum wheel
Rear Carrier Aluminum rear carrier
Center Carrier Equipped
Overall Dimensions (L * W * H) 1920 * 720 * 1140 mm
Wheelbase 1255 mm
Seat Height 780 mm
Ground Clearance 140 mm
Net Weight 93 kg
Max. Load Capacity 150 kg
Max. Speed 78 km/h
Climbing Ability ≥ 22°
Fuel Tank Capacity 3.1 L
Helmet Box Capacity Half-face helmet
Headlight Halogen bulb, 12V 35W (low beam 5W / high beam 12W)
Taillight Halogen bulb, 12V 21W / 5W
Front Turn Signals Halogen, 12V 10W
Rear Turn Signals Halogen, 12V 10W
License Plate Light 12V 5W
Battery 12V 5Ah, maintenance-free
Custom Motorcycle Orders Accepted
Contact us for personalized modifications and custom specifications to meet your specific requirements.
