Home /Products/Underbone Motorcycle/7.2Nm Trail Enduro Motorcycles 150kg Load Capacity Automatic Enduro Motorcycle

7.2Nm Trail Enduro Motorcycles 150kg Load Capacity Automatic Enduro Motorcycle

100
MOQ
350$-400$
Price
7.2Nm Trail Enduro Motorcycles 150kg Load Capacity Automatic Enduro Motorcycle
Features Gallery Product Description Chat Now
Features
Specifications
Engine Type: Single-cylinder, Horizontal Engine
Displacement: 107 Cc
Max. Power: 5.2 KW @ 8,000 ± 500 Rpm
Max. Torque: 7.2 N·m @ 5,000 ± 500 Rpm
Net Weight: 86 Kg
Max. Load Capacity: 150 Kg
Highlight:

7.2Nm trail enduro motorcycles

,

trail enduro motorcycles 150kg Load

,

86kg automatic enduro motorcycle
Basic Infomation
Place of Origin: CHINA
Brand Name: ZFYC
Model Number: ST1-W
Payment & Shipping Terms
Packaging Details: CKD，SKD，CBU
Delivery Time: 5-12weeks
Payment Terms: L/C,T/T
Supply Ability: 1000Unit/Month
Product Description

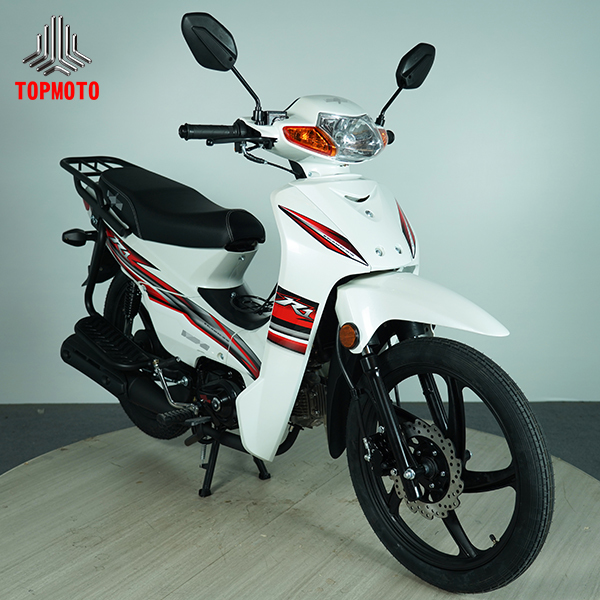

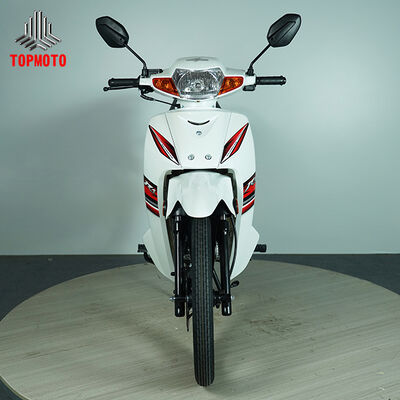

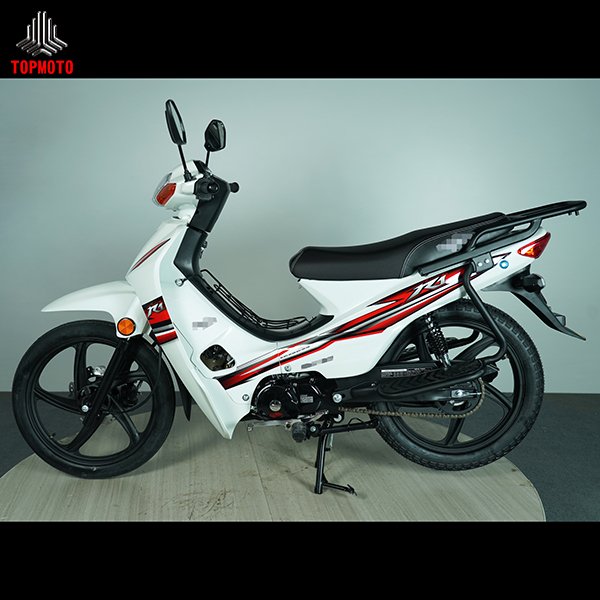

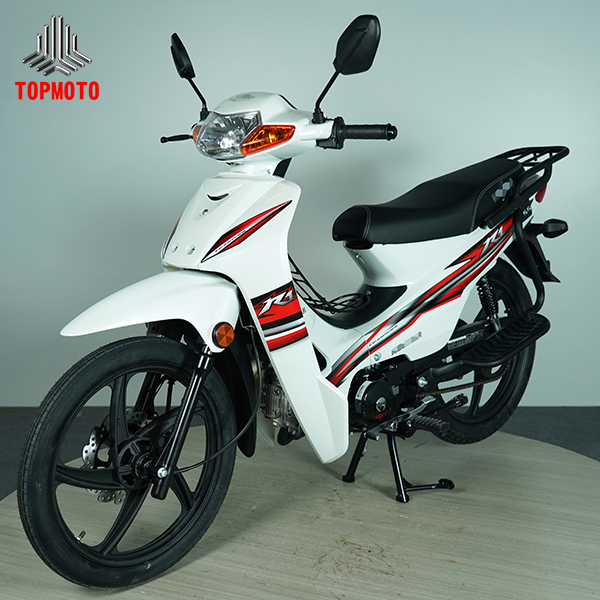

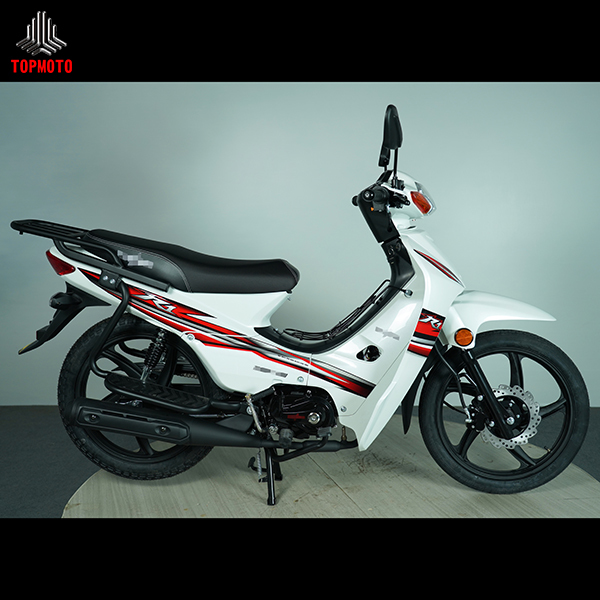

107cc City Motorcycle
107cc City Motorcycle | 5.2kW @ 8000rpm, 7.2N·m Torque | Chain Drive, Drum Brakes | 150kg Load Capacity
This versatile 107cc city motorcycle delivers reliable performance with 5.2kW maximum power and 7.2N·m torque. Designed for urban commuting and countryside rides, it features both electric and kick start systems for dependable operation in any conditions.
Key Features: 150kg load capacity • 80km/h maximum speed • ≥27° climbing ability • Chain drive system • Front and rear drum brakes
Engine & Performance Specifications
Engine Type Single-cylinder, horizontal engine
Bore * Stroke 52.4 mm * 49.5 mm
Displacement 107 cc
Compression Ratio 9.1 : 1
Max. Power 5.2 kW @ 8,000 ± 500 rpm
Max. Torque 7.2 N·m @ 5,000 ± 500 rpm
Ignition System CDI ignition
Starting System Electric & kick start
Magneto 6-pole magneto, full-wave rectification
Transmission & Drivetrain
Transmission 4-speed, semi-automatic clutch
Final Drive Chain drive
Suspension & Brakes
Front Suspension Telescopic hydraulic fork
Rear Suspension Dual spring shock absorbers
Front Brake Drum brake
Rear Brake Drum brake
Wheels & Tires
Front Tire 2.50-17
Rear Tire 2.75-17
Front Wheel Spoked wheel / Optional: aluminum wheel
Rear Wheel Spoked wheel / Optional: aluminum wheel
Dimensions & Capacity
Overall Dimensions (L*W*H) 1900 * 700 * 1070 mm
Wheelbase 1220 mm
Seat Height 740 mm
Ground Clearance 110 mm
Net Weight 86 kg
Max. Load Capacity 150 kg
Performance & Utility
Max. Speed 80 km/h
Climbing Ability ≥ 27°
Fuel Tank Capacity 3.5 L
Rear Carrier Yes
Center Carrier Yes
Helmet Box No
Electrical System
Headlight 12V 35W
Taillight Combined taillight, 12V 21W / 10W
Front Turn Signals 12V 5W
Rear Turn Signals 12V 5W
License Plate Light 12V 5W
Battery 12V 5Ah, maintenance-free
