Aujustable Speed Air Cooled Powerful Single Cylinder Motorcycle 93kg Net Weight

200
MOQ
400$
Price
Aujustable Speed Air Cooled Powerful Single Cylinder Motorcycle 93kg Net Weight
Features Gallery Product Description Chat Now
Features
Specifications
Engine Type: Single-cylinder, Horizontal Engine
Bore × Stroke: 52.4 Mm × 49.5 Mm
Displacement: 107 Cc
Max. Power: 5.2 KW @ 8,000 ± 500 Rpm
Max. Torque: 7.2 N·m @ 5,000 ± 500 Rpm
Transmission: 4-speed, Semi-automatic Clutch
Highlight:

aujustable Speed powerful single cylinder motorcycle

,

5200W powerful single cylinder motorcycle

,

ODM air cooled single cylinder motorcycles
Basic Infomation
Place of Origin: CHINA
Brand Name: ZFYC
Model Number: XY1-S
Payment & Shipping Terms
Packaging Details: CKD,SKD,CBU
Delivery Time: 5-12 weeks
Payment Terms: L/C,T/T
Supply Ability: 1000Unit/Month
Product Description

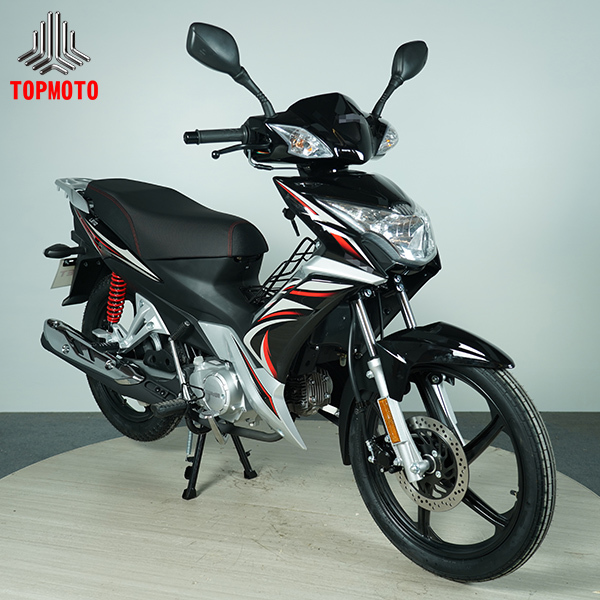

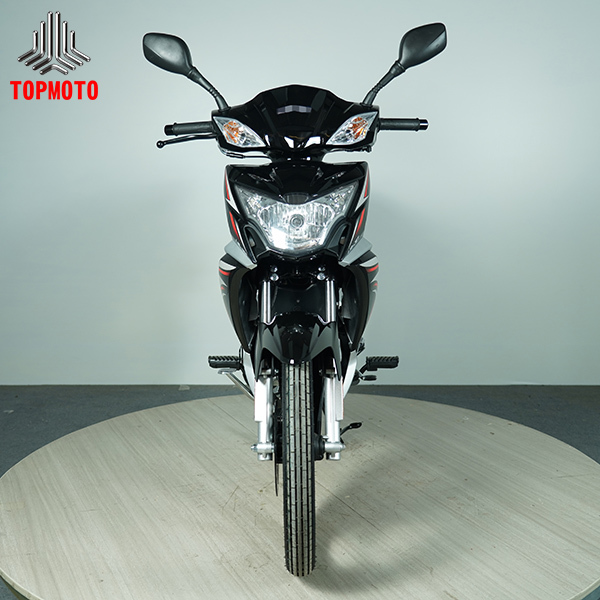

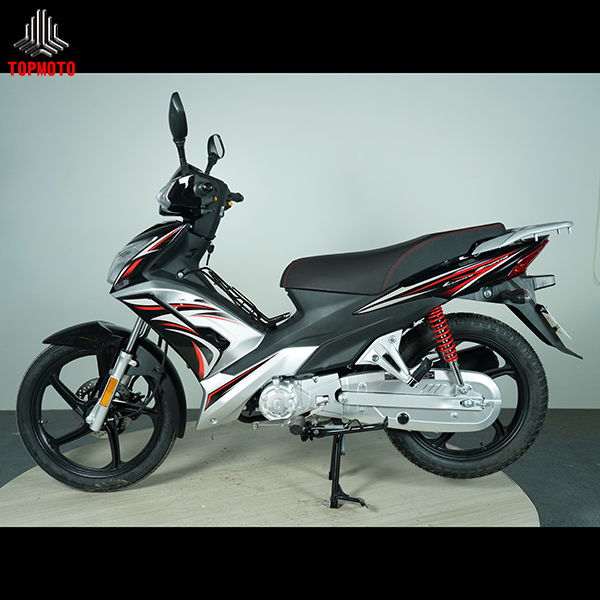

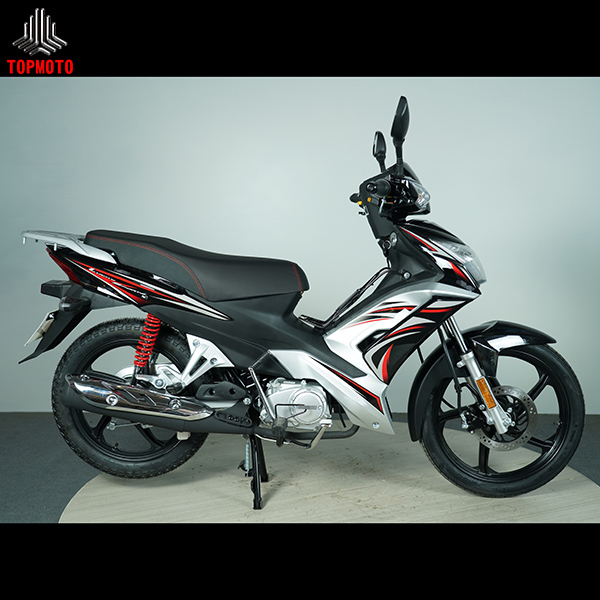

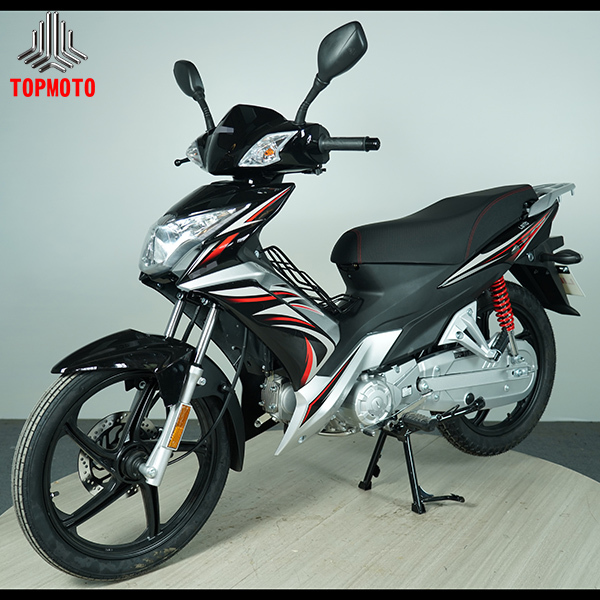

107cc Single-Cylinder Horizontal Air-Cooled Motorcycle
107cc Single-Cylinder Horizontal Air-Cooled Motorcycle with CDI Ignition, 4-Speed Semi-Automatic Clutch, Telescopic Hydraulic Front Fork & Dual Rear Shock Absorbers, 78km/h Max Speed, 93kg Net Weight
This 107cc horizontal single-cylinder air-cooled motorcycle features a CDI ignition system for reliable starts and a 4-speed semi-automatic clutch. With a maximum power of 5.2kW and maximum torque of 7.2N*m, it easily handles both urban and rural roads. The air-cooled design reduces maintenance costs, while the 9.1:1 compression ratio balances power output and fuel efficiency, making it an ideal choice for dependable daily commuting.
Key Features
  • CDI ignition system for reliable starting
  • 4-speed semi-automatic clutch transmission
  • Telescopic hydraulic front fork suspension
  • Dual rear shock absorbers
  • Maximum speed: 78 km/h
  • Net weight: 93 kg with 150 kg load capacity
  • Electric & kick start system
  • Chain drive final transmission
Technical Specifications
Item Specification
Engine Type Single-cylinder, horizontal, air-cooled
Bore * Stroke 52.4 mm * 49.5 mm
Displacement 107 cc
Compression Ratio 9.1 : 1
Max. Power 5.2 kW @ 8,000 ± 500 rpm
Max. Torque 7.2 N*m @ 5,000 ± 500 rpm
Ignition System CDI
Starting System Electric & kick start
Transmission 4-speed, semi-automatic clutch
Final Drive Chain drive
Front Suspension Telescopic hydraulic fork
Rear Suspension Dual shock absorbers
Front Brake Drum brake
Rear Brake Drum brake
Front Tire 2.50-17 (M031 tread pattern)
Rear Tire 2.75-16 (M034 tread pattern)
Overall Dimensions (L * W * H) 1920 * 720 * 1140 mm
Wheelbase 1255 mm
Seat Height 780 mm
Ground Clearance 140 mm
Net Weight 93 kg
Max. Load Capacity 150 kg
Max. Speed 78 km/h
Climbing Ability ≥ 22°
Fuel Tank Capacity 3.1 L
Customization Available
Custom motorcycle orders accepted to meet your specific requirements and preferences.
