Home /Products/Underbone Motorcycle/123.7cc Large Displacement Single Cylinder Motorcycles 6.3kW Underbone Motorcycle With Clutch

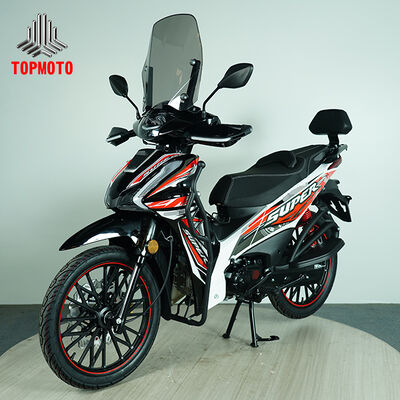

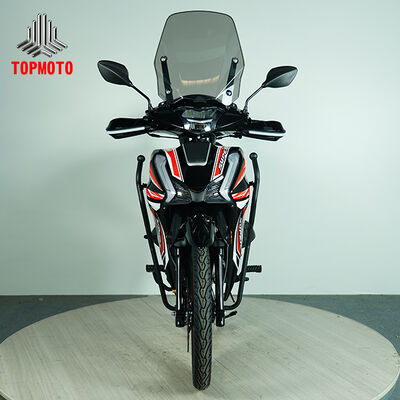

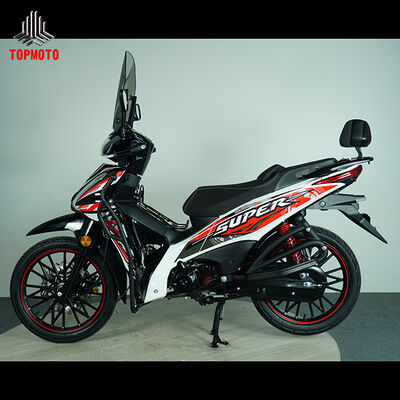

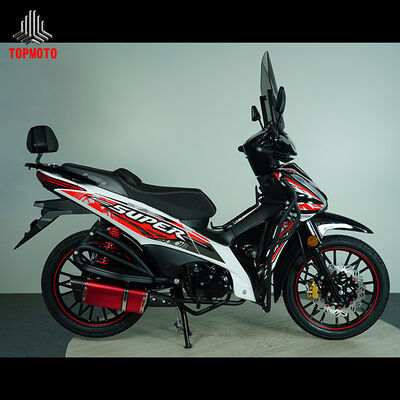

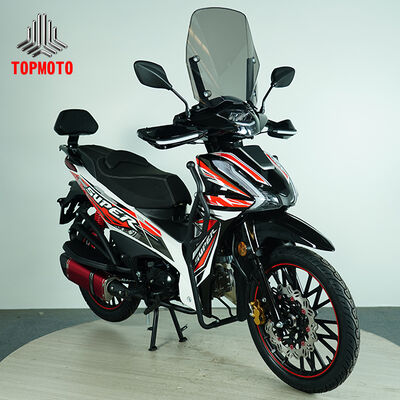

123.7cc Large Displacement Single Cylinder Motorcycles 6.3kW Underbone Motorcycle With Clutch

100
MOQ
400$
Price
123.7cc Large Displacement Single Cylinder Motorcycles 6.3kW Underbone Motorcycle With Clutch
Features Gallery Product Description Chat Now
Features
Specifications
Engine Type: Single-cylinder, Horizontal, Air-cooled
Displacement: 123.7 Cc
Max. Power: 6.3 KW @ 7,500 Rpm
Transmission: 4-speed, Semi-automatic Clutch
Front Wheel: Spoked Wheel (optional Aluminum Wheel)
Rear Wheel: Spoked Wheel (optional Aluminum Wheel)
Highlight:

123.7cc large displacement single cylinder motorcycles

,

6.3kW large displacement single cylinder motorcycles

,

123.7cc underbone motorcycle with clutch
Basic Infomation
Place of Origin: CHINA
Brand Name: ZFYC
Model Number: KUP-BW
Payment & Shipping Terms
Packaging Details: CKD,SKD,CBU
Delivery Time: 5-12 weeks
Payment Terms: L/C,T/T
Supply Ability: 1000Unit/Month
Product Description
Reliable 123.7cc Commuter Motorcycle
Classic and practical 123.7cc displacement motorcycle with max power 6.3kW and max torque 8.8N·m, smooth and stable power output, high-efficiency chain drive, 17-inch standard tires with strong grip.
Built for daily commuting and reliable transportation, this classic motorcycle delivers smooth power output with high-efficiency chain drive and excellent gear ratios for optimal performance.
Key Features
  • 123.7cc displacement with 6.3kW max power and 8.8N·m torque
  • Smooth and stable power delivery for reliable performance
  • High-efficiency chain drive system
  • 17-inch standard tires with strong grip and stability
  • Front telescopic hydraulic fork and rear dual shock absorbers
  • Front and rear drum brakes for safe, stable stopping power
  • Electric & kick start system for reliable ignition
  • Comfortable 770mm seat height with 150kg max load capacity
Technical Specifications
Engine Type Single-cylinder, horizontal, air-cooled
Bore * Stroke 54.0 mm * 54.0 mm
Displacement 123.7 cc
Compression Ratio 9.0 : 1
Max. Power 6.3 kW @ 7,500 rpm
Max. Torque 8.8 N*m @ 5,500 rpm
Ignition System CDI
Starting System Electric & kick start
Transmission 4-speed, semi-automatic clutch
Final Drive Chain drive
Front Suspension Telescopic hydraulic fork
Rear Suspension Dual shock absorbers
Front Brake Drum brake
Rear Brake Drum brake
Front Tire 2.50-17 (standard tire)
Rear Tire 2.75-17 (standard tire)
Overall Dimensions 1900 * 720 * 1080 mm
Wheelbase 1260 mm
Seat Height 770 mm
Ground Clearance 140 mm
Net Weight 95 kg
Max. Load Capacity 150 kg
Max. Speed 75 km/h
Fuel Tank Capacity 3.1 L
Custom motorcycle orders accepted
